Security Cameras for 50,000 Sq. Ft. Warehouse and Shipping Yard

Background

A logistics company operated a substantial 50,000 square foot warehouse facility with an adjacent paved lot used for shipping container parking. The facility handled high-volume shipping operations through 12 dedicated loading docks, regularly loading and unloading containers throughout the workday. As the business expanded, management recognized the need for comprehensive video surveillance to monitor all warehouse operations and exterior areas. The company sought a solution that would provide detailed visibility of all critical areas, enhance security, and allow for monitoring of container loading processes to ensure operational efficiency and safety compliance.

The Challenge

The client faced several significant security and monitoring challenges that needed to be addressed:

• The large 50,000 sq. ft. warehouse required complete visibility coverage, including all interior operations and 12 shipping docks
• Detailed monitoring of the container loading process was essential to ensure proper handling procedures
• The extensive paved shipping yard needed surveillance despite lacking underground conduit infrastructure
• Any exterior cabling would need to withstand environmental conditions while maintaining data integrity
• The distance between camera locations exceeded standard cable transmission limitations
• The client required an extensive four-month recording retention period for all security footage

The Solution

To address these challenges, a comprehensive security camera system was designed featuring:

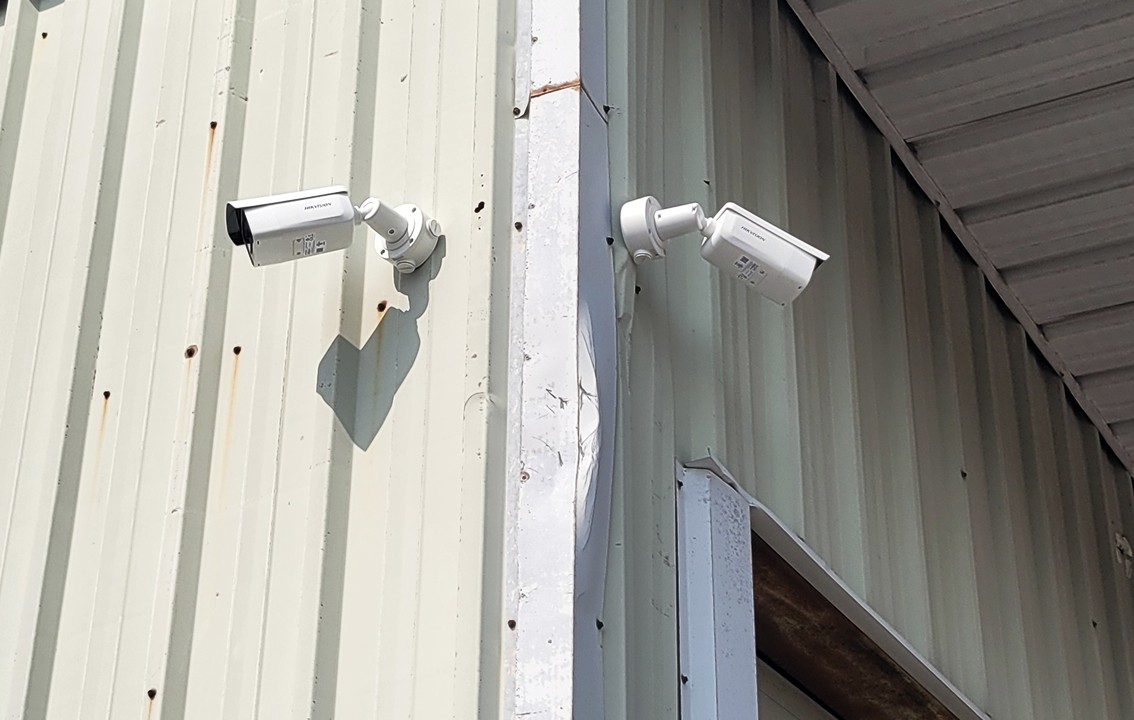

• A network of 60 high-definition 5MP resolution cameras strategically positioned throughout the facility and yard

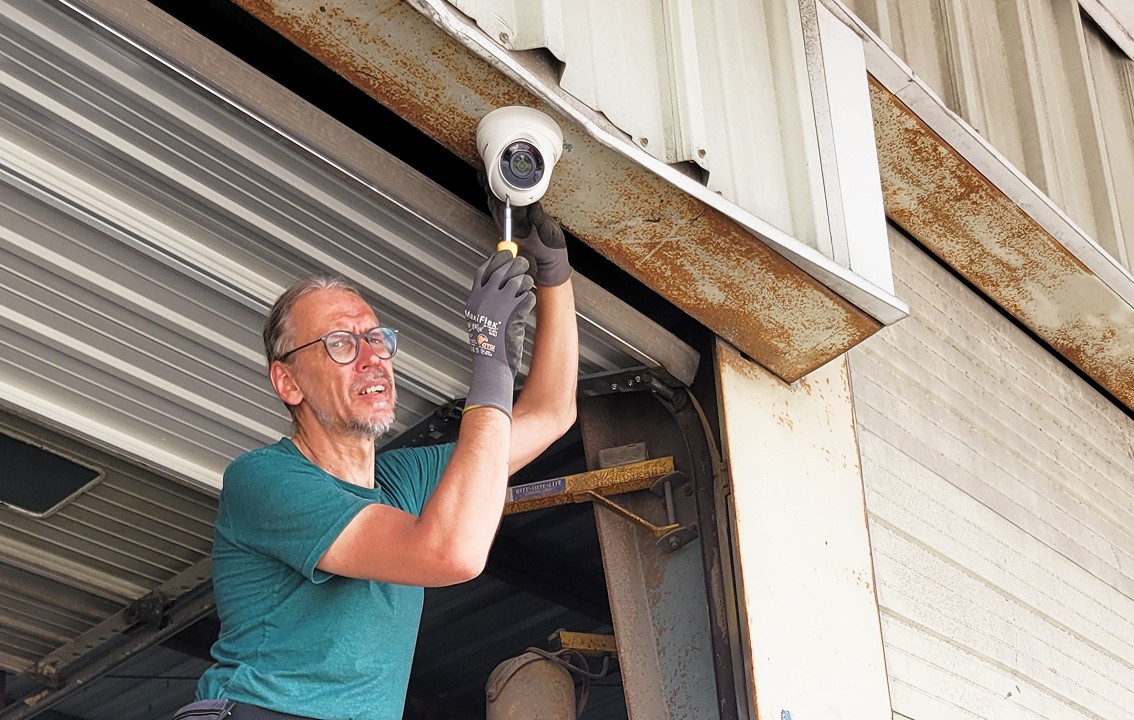

• Specialized camera placements to monitor all 12 shipping docks and the interior of shipping containers during loading
• Aerial cable runs using Category 6 (Cat6) cabling reinforced with attached steel messenger wire for physical support
• A strategically positioned network switch in the yard to overcome the 330-foot length limitation of Cat6 cable
• Three separate Network Video Recorders (NVRs) to manage the extensive storage requirements
• Each NVR equipped with four 10TB Hard Disk Drives to achieve the four-month retention period

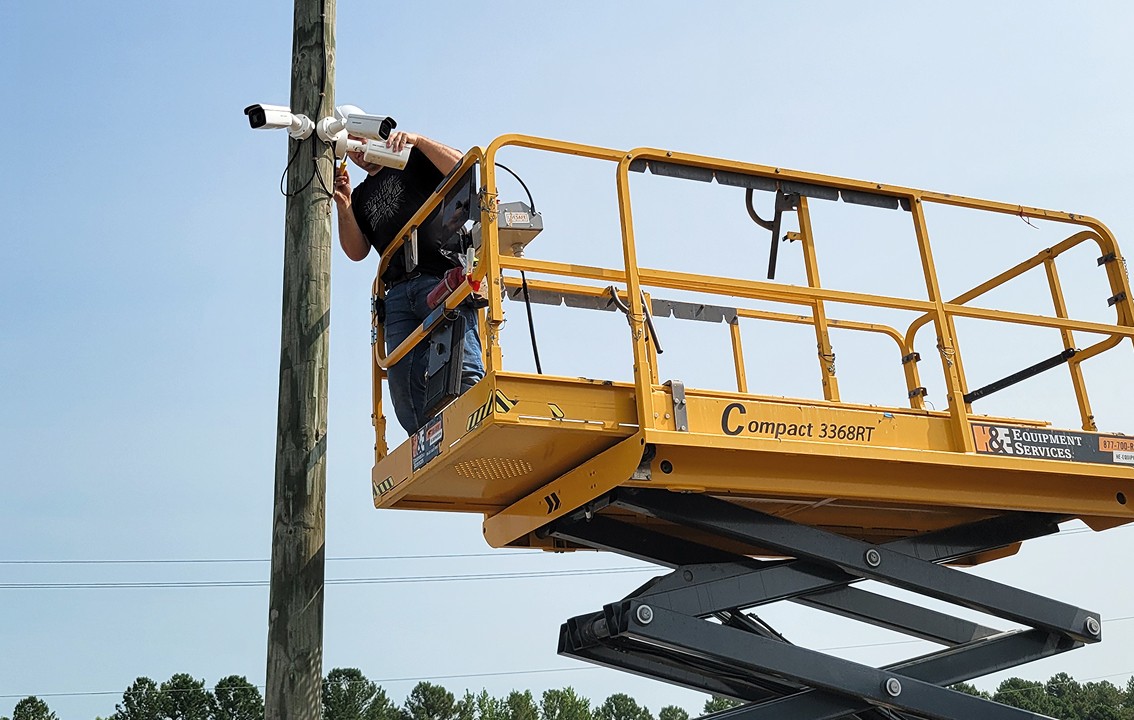

The solution utilized existing infrastructure, such as mounting cables on light poles in the shipping yard, while ensuring that every critical area had high-resolution coverage for detailed monitoring.

Implementation

The implementation process was carefully planned and executed to ensure comprehensive coverage without disrupting daily operations:

• Site Assessment: The facility was thoroughly evaluated, and all critical areas requiring surveillance were mapped. Existing infrastructure that could support the camera system was also identified.
• Custom Design: A tailored camera system was designed, with precise camera placement to provide complete coverage of the warehouse interior, shipping docks, and container yard.
• Infrastructure Adaptation: Given the pre-paved yard that prevented underground conduit installation, aerial runs were designed using Cat6 cables supported by steel messenger wire between existing light poles.
• Network Architecture: To overcome distance limitations, a network switch was positioned in the yard to segment longer cable runs, ensuring data integrity across the system.

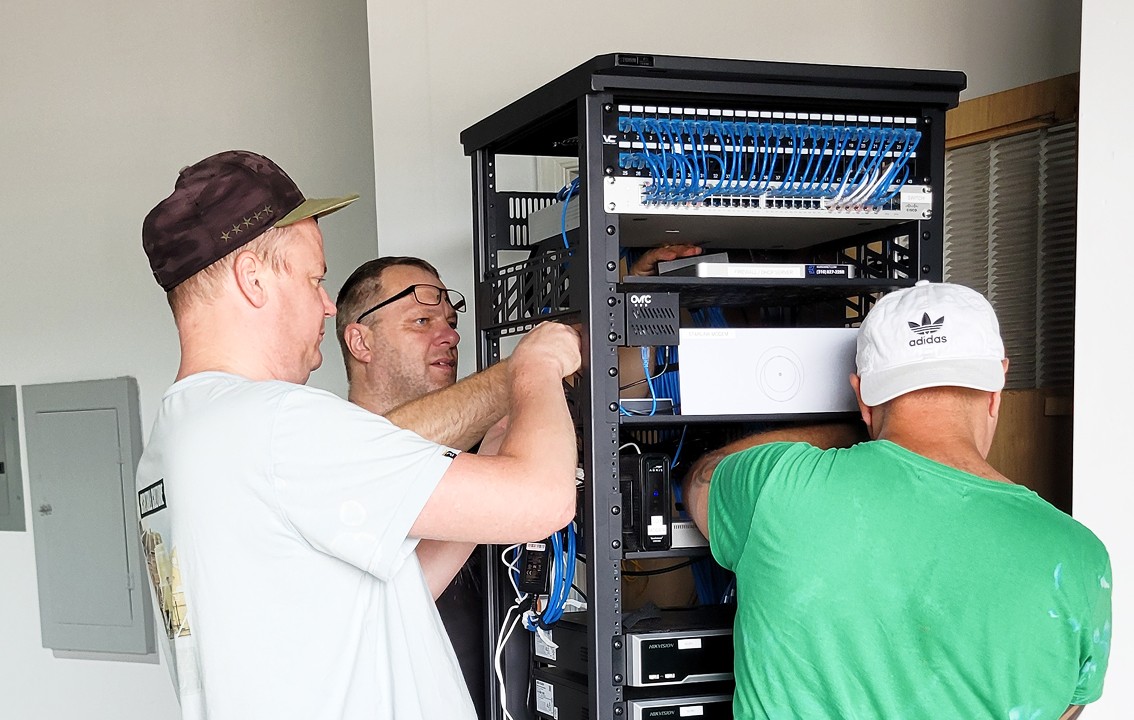

• Storage Solution: Three separate NVRs, each with four 10TB HDDs, were installed and configured to achieve the required four-month retention period for all 60 high-resolution camera feeds.
• Testing and Calibration: Following installation, the system underwent comprehensive testing to ensure that all cameras provided the required detail and that recording and retention parameters met specifications.

Impact and Benefits

Following the implementation of the comprehensive security camera system, the client experienced significant operational improvements:

• Enhanced Security: Complete visibility of all warehouse operations and the shipping yard substantially improved overall facility security
• Operational Oversight: Management gained the ability to monitor shipping dock operations and container loading procedures remotely
• Quality Control: Detailed footage of container loading processes allowed for review of handling procedures and identification of improvement opportunities
• Extended Retention: The four-month recording retention period provided ample time for investigation of any incidents or quality issues
• Scalable Infrastructure: The network architecture implemented allows for future expansion as the business evolves
• Environmental Adaptability: The reinforced exterior cabling solution withstood weather conditions while maintaining system integrity

The installation benefited the shipping operations, with managers reporting improved efficiency and accountability in dock operations and container handling procedures.

Conclusion

This project demonstrates how carefully planned security camera infrastructure can overcome significant technical challenges while delivering comprehensive monitoring capabilities. Key takeaways from this implementation include:

• High-resolution camera technology can provide detailed monitoring of extensive facilities when strategically deployed
• Creative infrastructure solutions can overcome physical limitations such as pre-paved areas and distance constraints
• Properly designed storage solutions are essential for meeting extended retention requirements
• Comprehensive facility surveillance enhances both security and operational efficiency
• A well-designed system balances coverage needs with practical implementation considerations

The 50,000 sq. ft. warehouse and shipping yard now benefit from complete surveillance coverage, which supports both security requirements and operational improvements through enhanced visibility of all critical areas.
